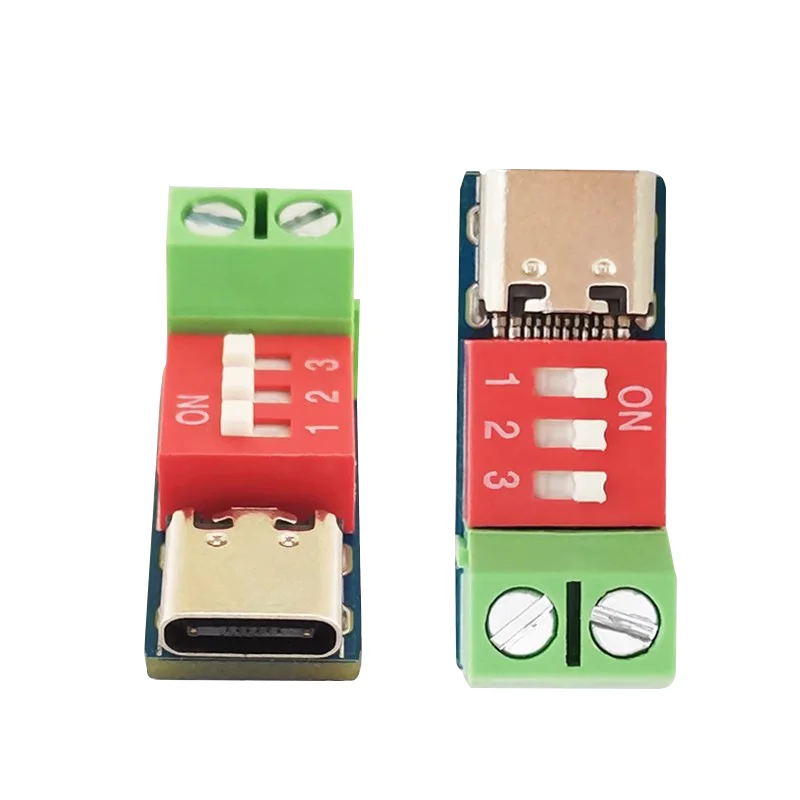

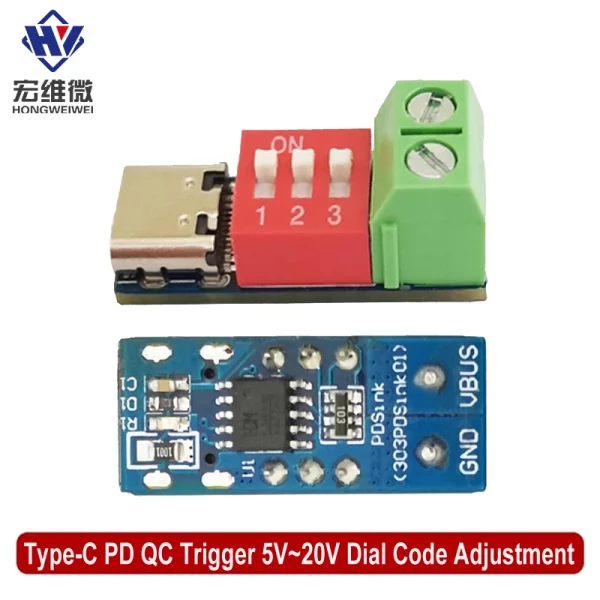

Type-C PD QC Trigger 5V~20V Dial Code Adjustment DC Voltage Power Module Dial Adjustment Voltage Fast Charging Decoy Module
Product Features
The PD decoy supports boost fast charging protocols such as PD3.0/2.0 and BC1.2, with a maximum power of 100W, and provides functions such as over temperature and over voltage protection.
The voltage can be adjusted through a dip switch, with a maximum output voltage of 20V.
Supports fast charging protocols such as PD3.0/2.0, BC1.2, etc
Supports USB Type-C PD, positive and negative plug detection, and automatic switching
Supports input voltage from 4V to 22V
Parameter Introduction
Input voltage: Supports 4V to 22V
Output voltage: up to 20V
Interface: Supports USB Type-C PD
Power: Supports up to 100W
Product size: 11 * 28mm

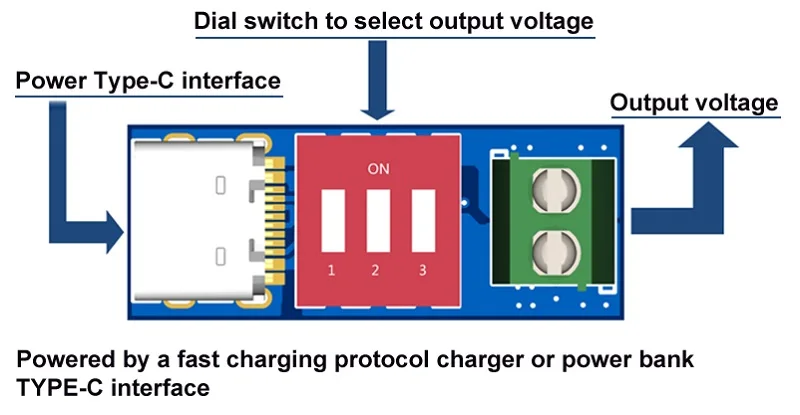

The toggle switch can request the corresponding voltage according to the charger protocol
instructions

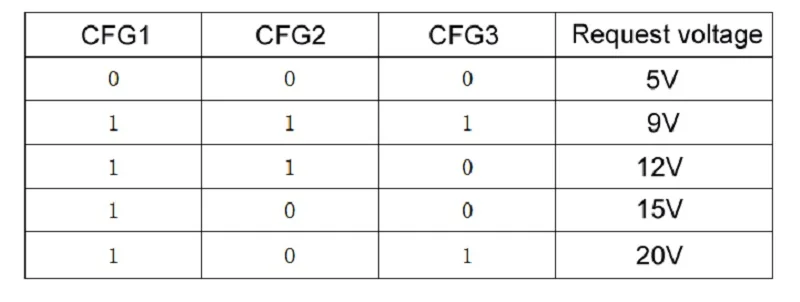

CFG1 corresponds to dip switch 1
CFG2 corresponds to dip switch 2
CFG3 corresponds to dip switch 3
To dial down is 0, to dial up is 1 (on the ON side).
