描述
- Hign-concerned Chemical: None
- is_customized: Yes
- Model Number: FT232RL FTDI USB to TTL
- Operating Temperature: Standard
- Dissipation Power: Standard
- Supply Voltage: Standard
- Application: Computer
- Condition: New
- Type: Logic ICs
- Brand Name: NoEnName_Null
- Origin: Mainland China

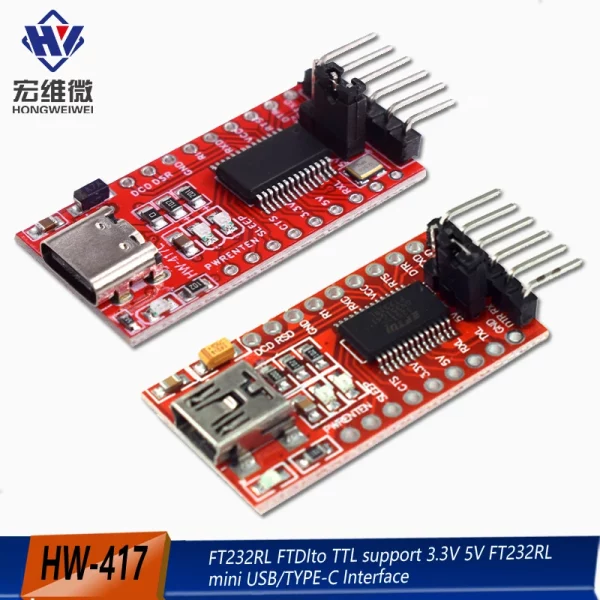

The module uses the FT232RL chip with USB 2.0 to convert USB into a serial port. It has two output levels, 3.3V and 5V,
It can be set by short circuiting the jumper cap with VCC. For computers without a serial port, a USB to serial chip can be used to virtually convert them
Create a serial port. The FT232RL chip is a single-chip solution that generally does not require external devices and is connected to a crystal oscillator and USB ports
The EEPROM for configuring resistors and storing product information has been integrated internally.
Product information:
Extract all signal ports of FT232RL chip, TTL/CMOS levels
USB 5V power supply, optional 3.3V/5V output levels. If other levels are needed, they can be directly connected to the VCC and GND pins
Provide target voltage on top
Equipped with RXD/TXD transceiver communication indicator light
Product features:
Interface type: USB to TTL
Output voltage: 3.3V-5V
Supports WINDOWS/Win7/Win10 32-bit/64 bit
Full speed USB device interface, compatible with USB V2.0
Dual 3.3V and 5V power outputs, compatible with 3.3V and 5V devices
