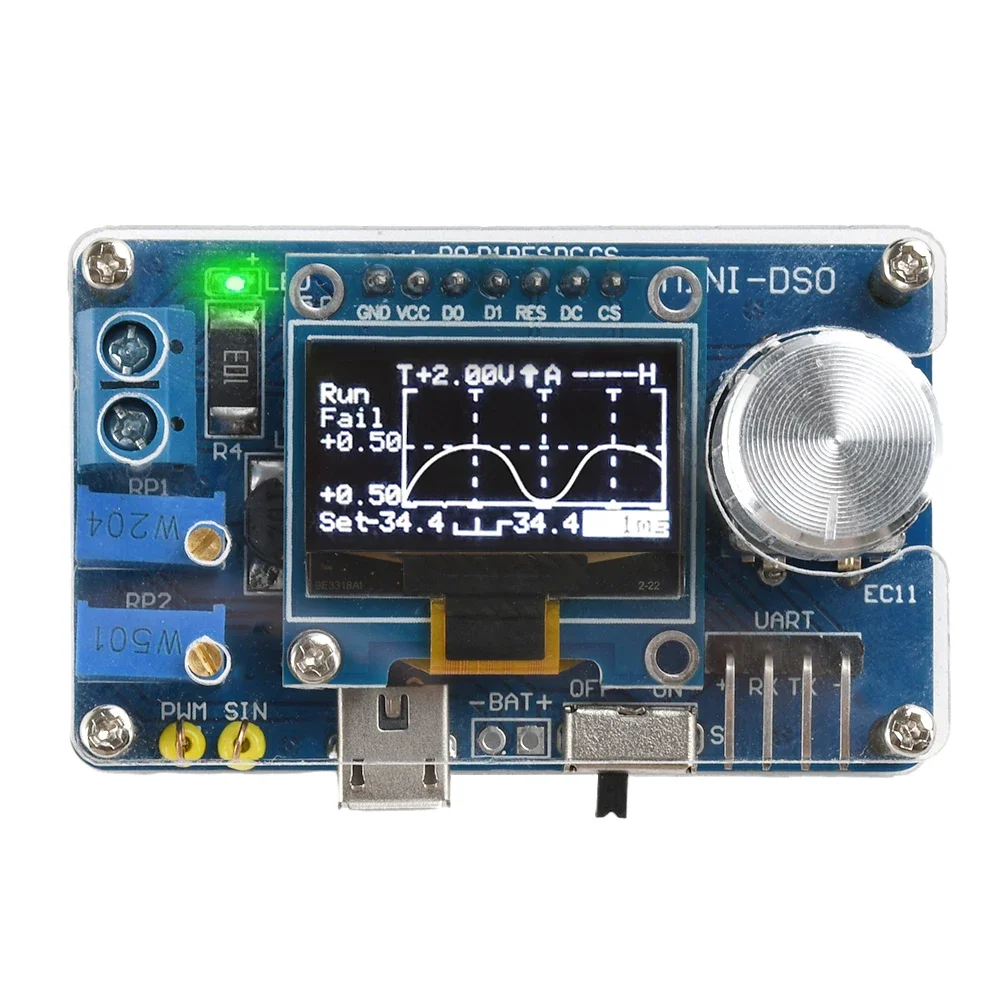

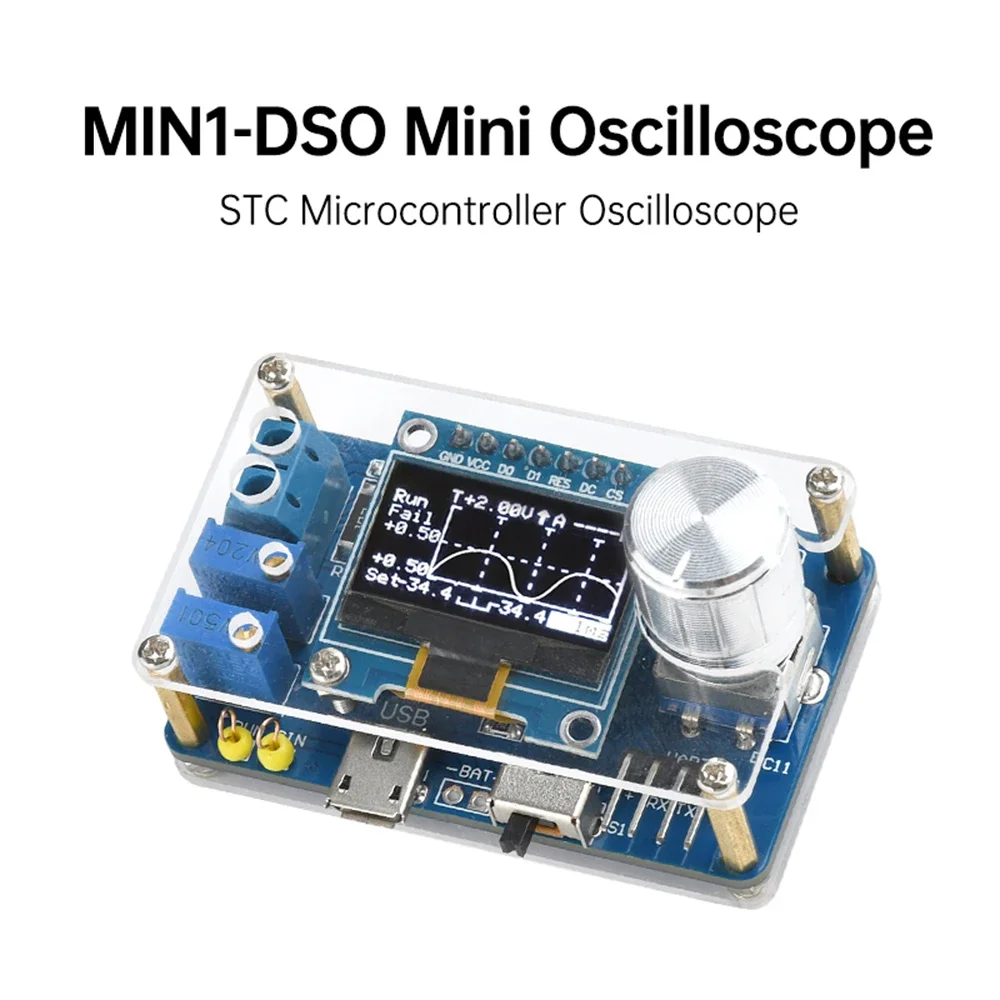

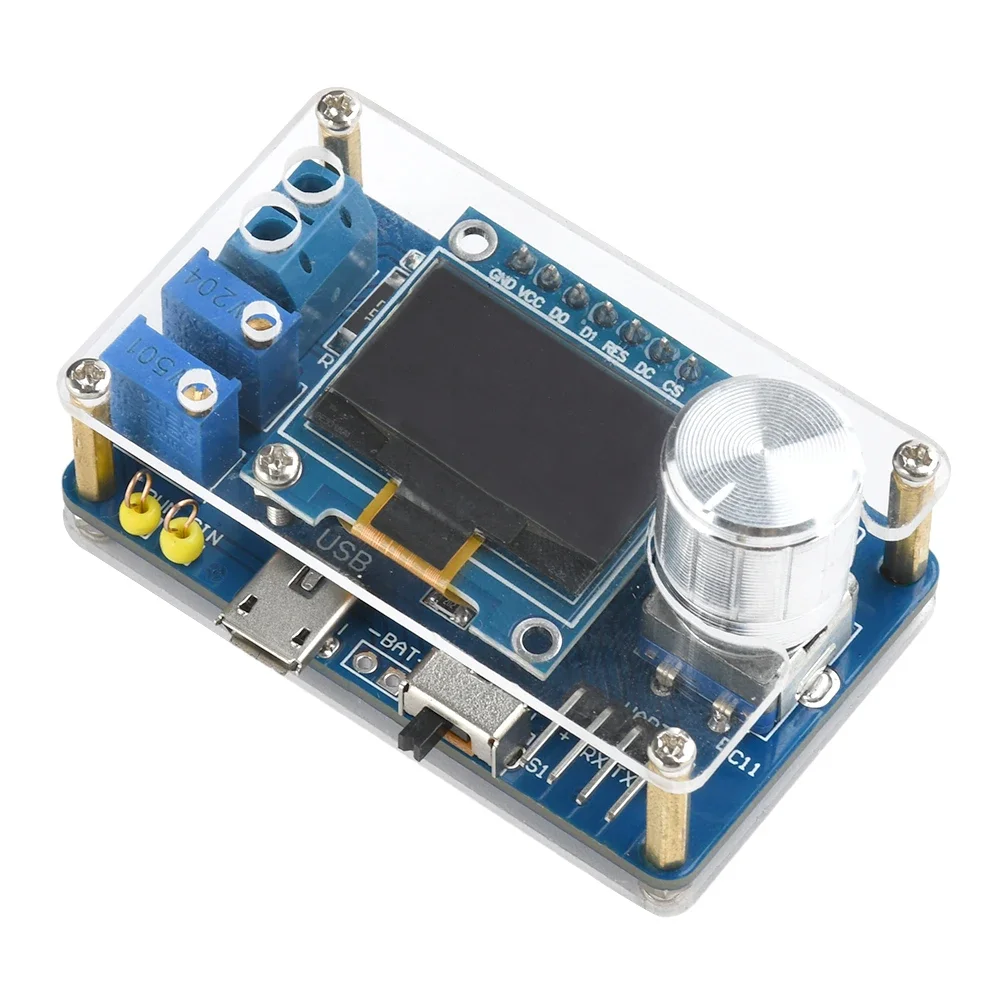

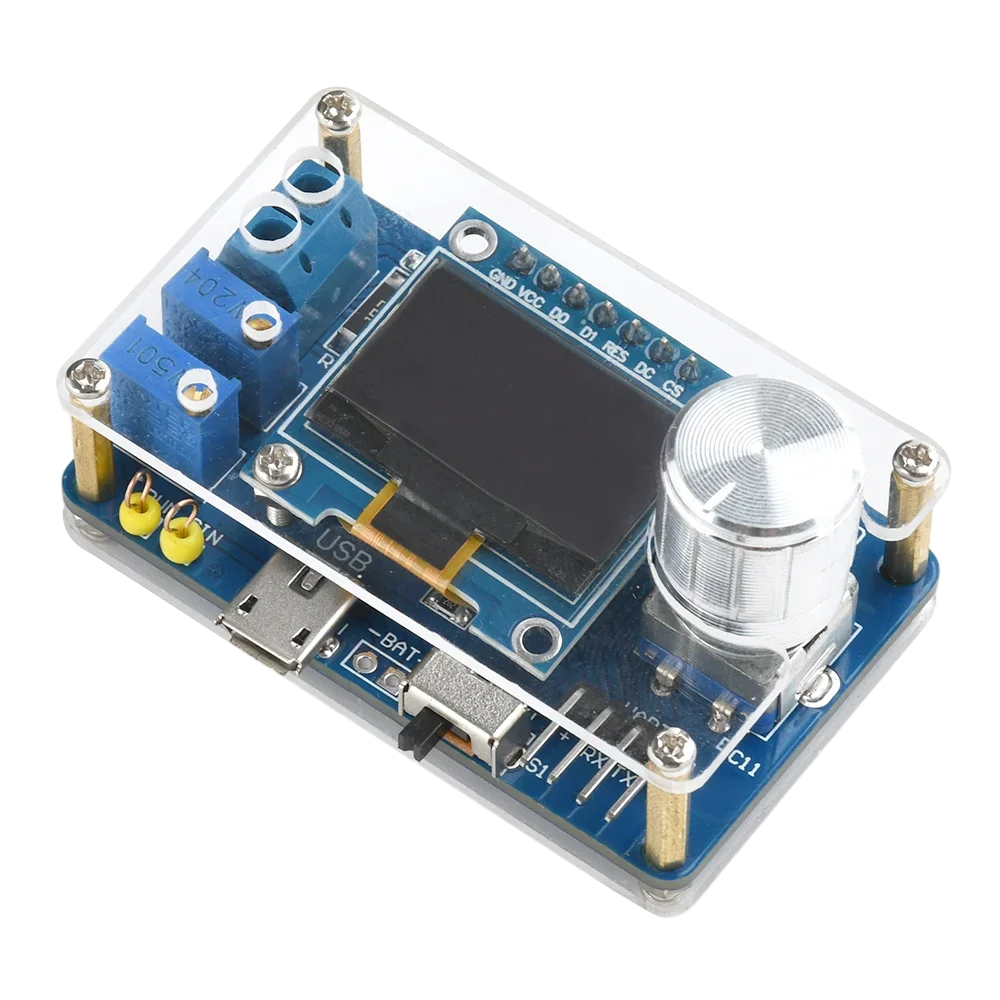

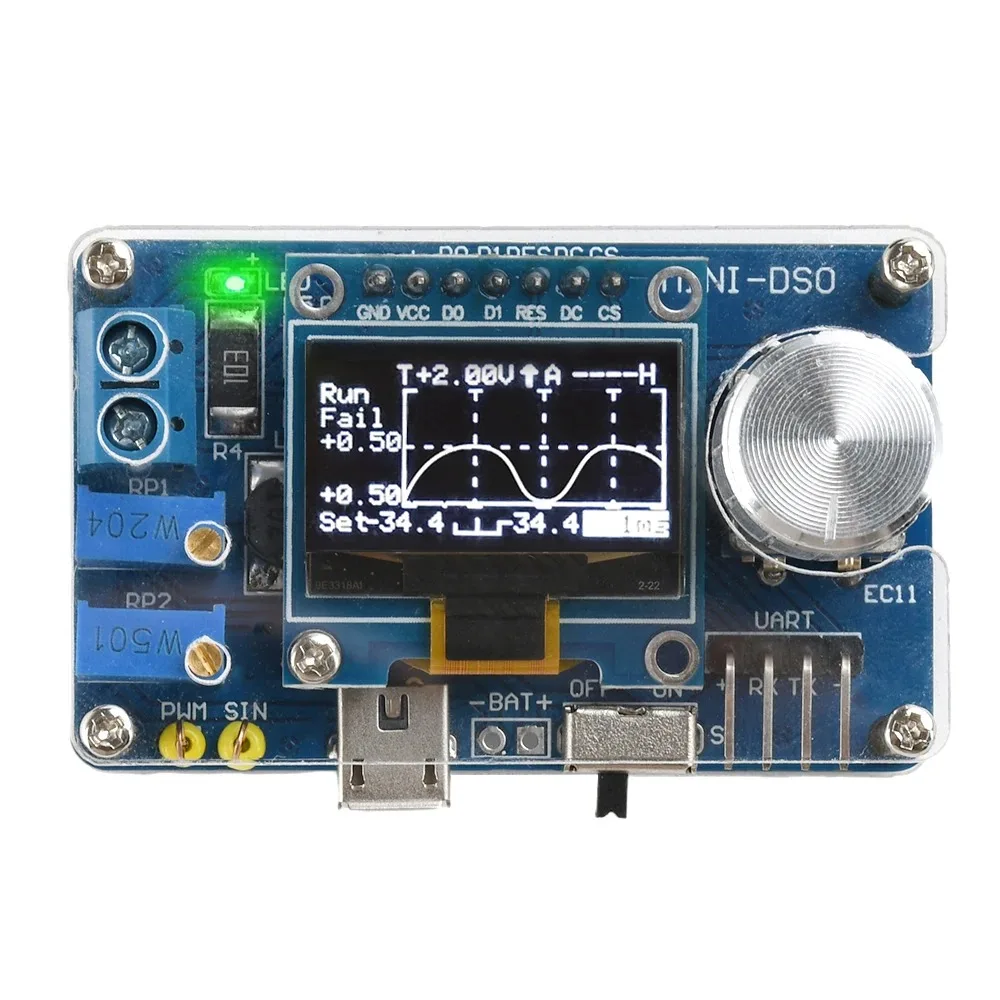

DIY Mini Digital Oscilloscope Kit STC8K8A Microcontroller Electronic Component Soldering Practice Loose Kit

DIY Mini Digital Oscilloscope Kit STC8K8A Microcontroller Electronic Component Soldering Practice Loose Kit

Feature:

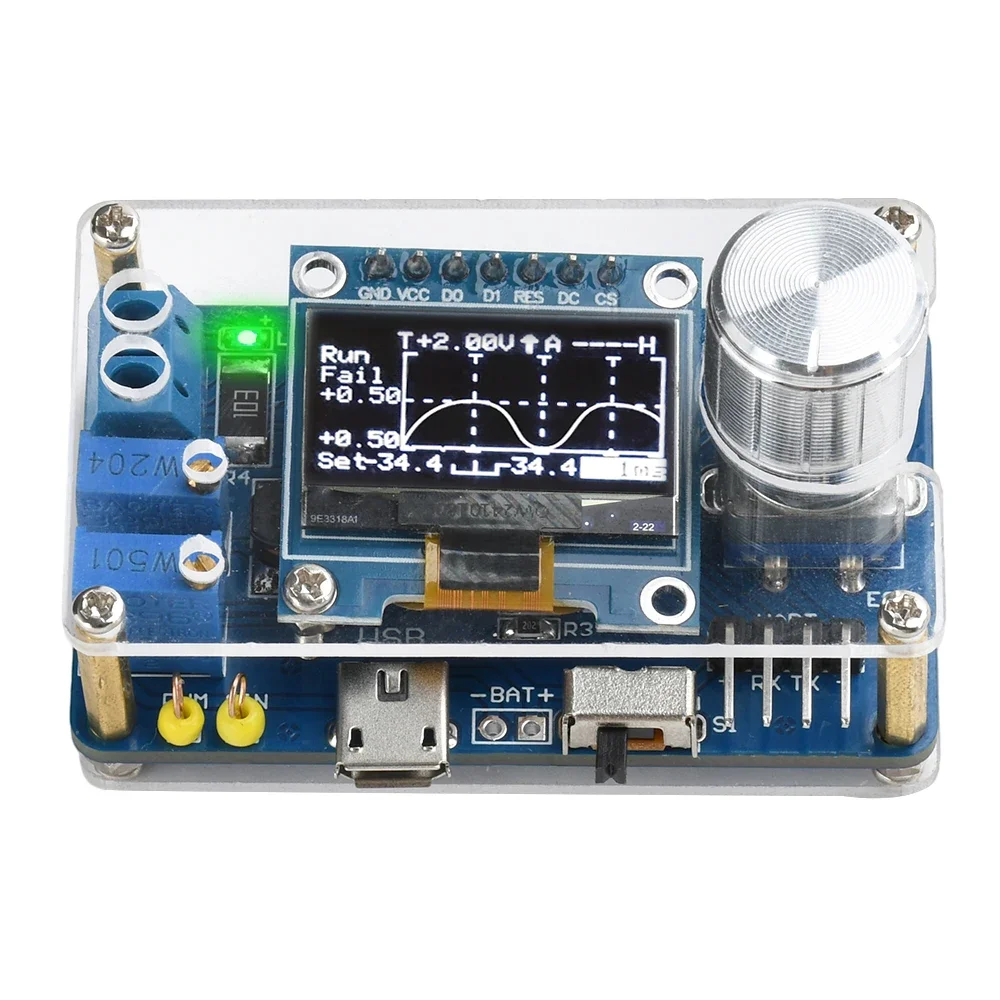

1. Indicator light: Usually the indicator light is on to indicate that sampling is running

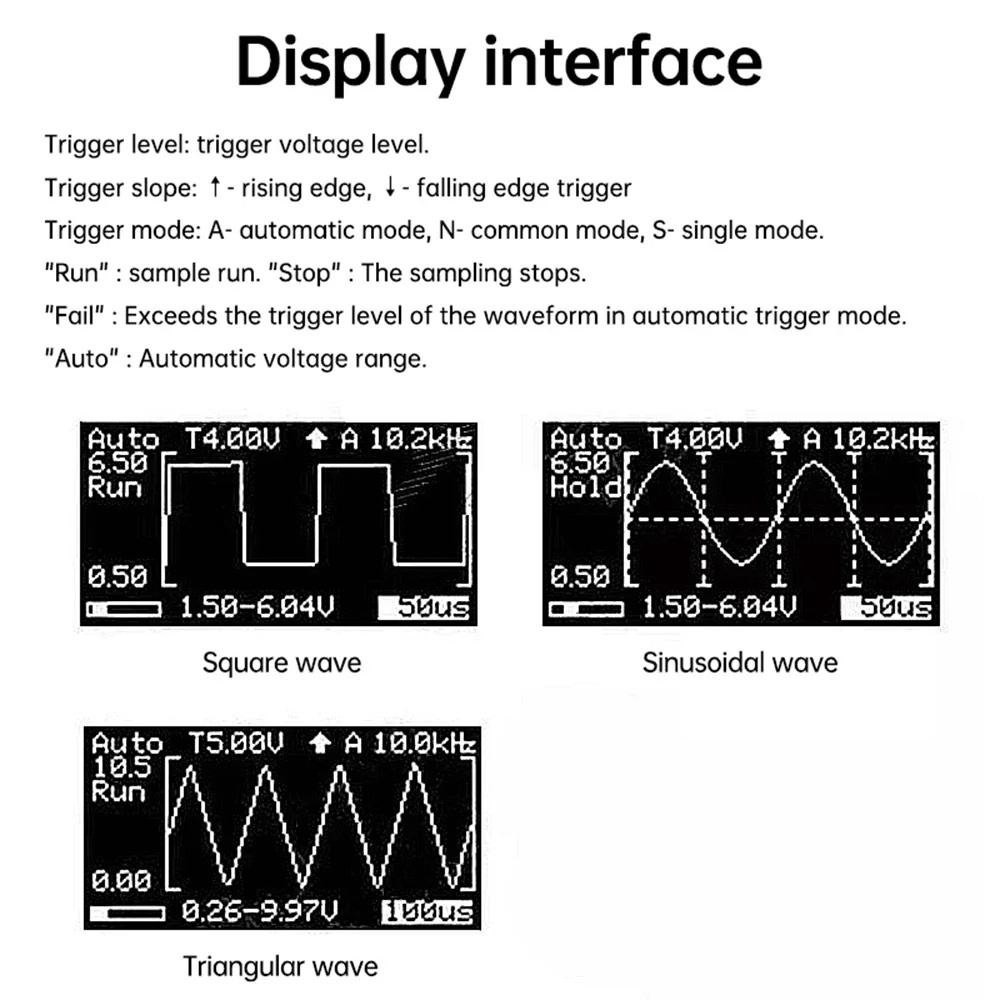

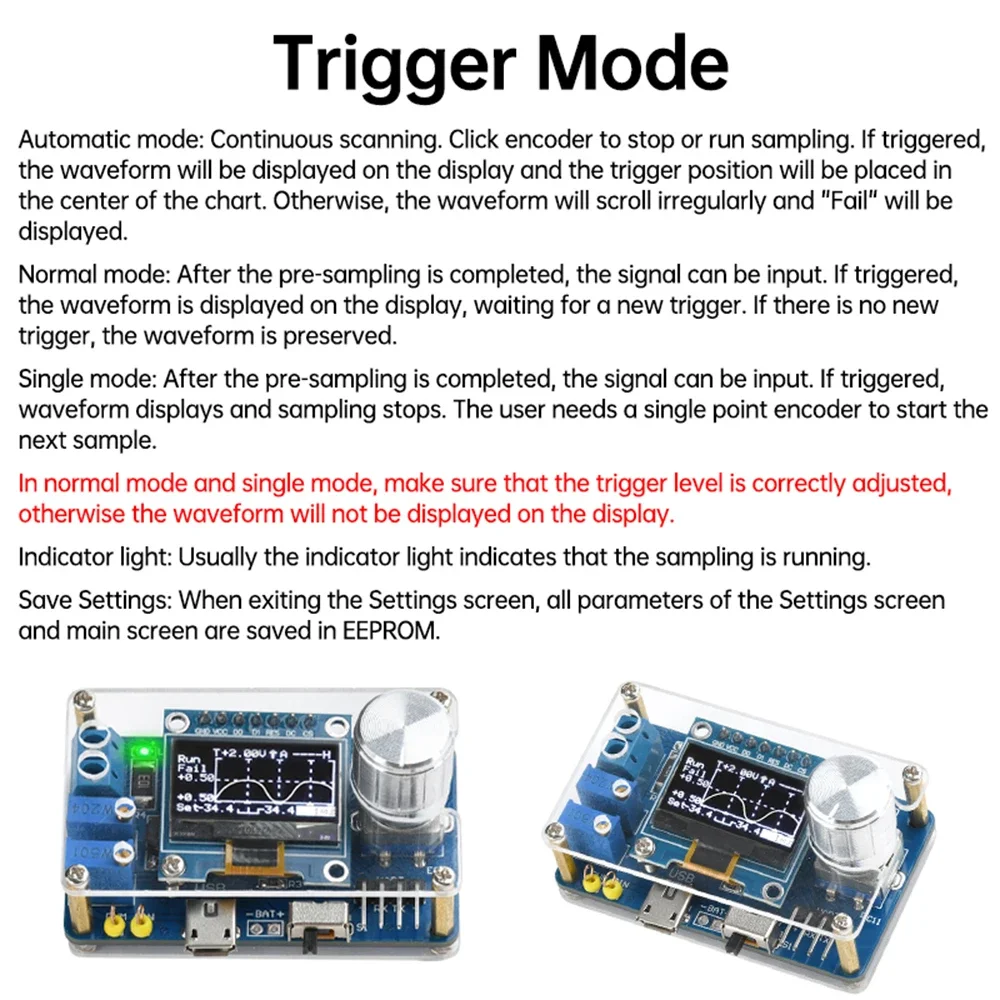

2. There are three trigger modes: automatic mode, normal mode, and single mode

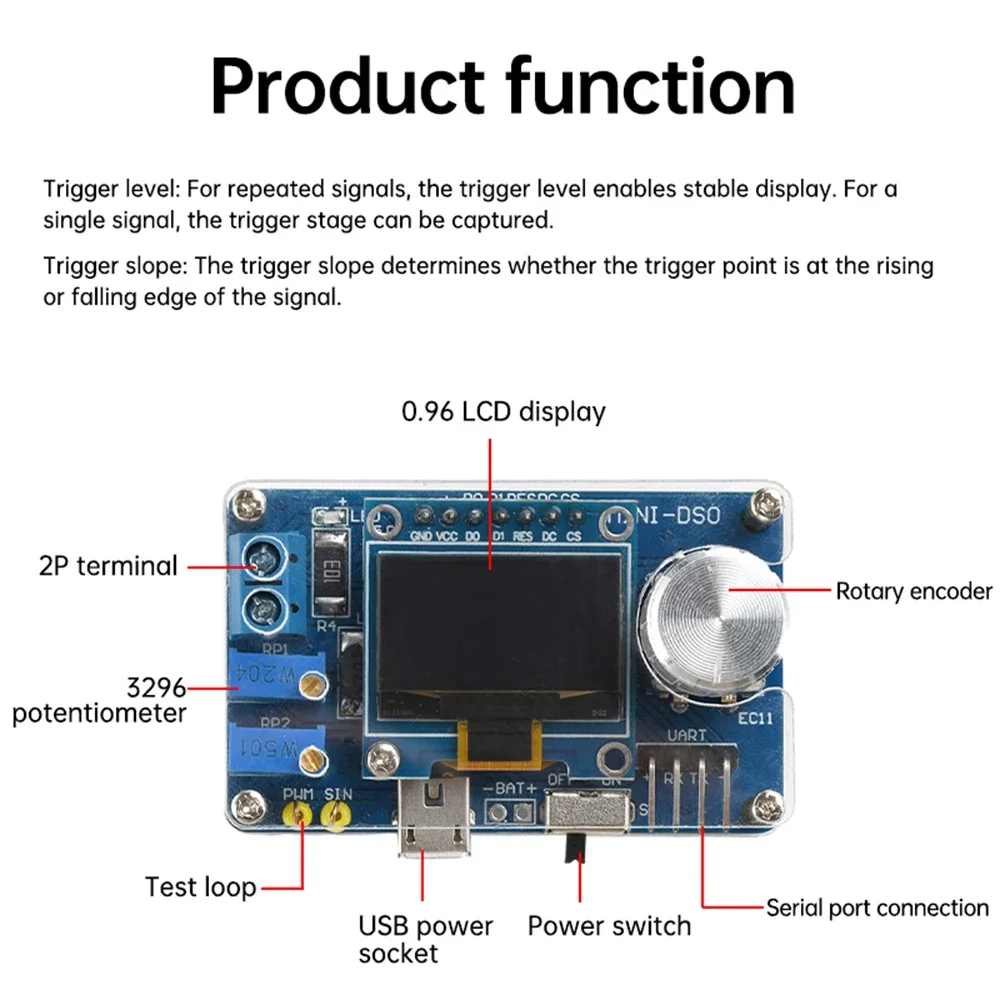

3. Trigger slope: The trigger slope determines whether the trigger point is on the rising or falling edge of the signal

4. Trigger level: For repetitive signals, the trigger level can make it display stably. For single-shot signals, the trigger level can capture

5. Save settings: When exiting the setting interface, all parameters of the setting interface and the main interface will be saved in the EEPROM

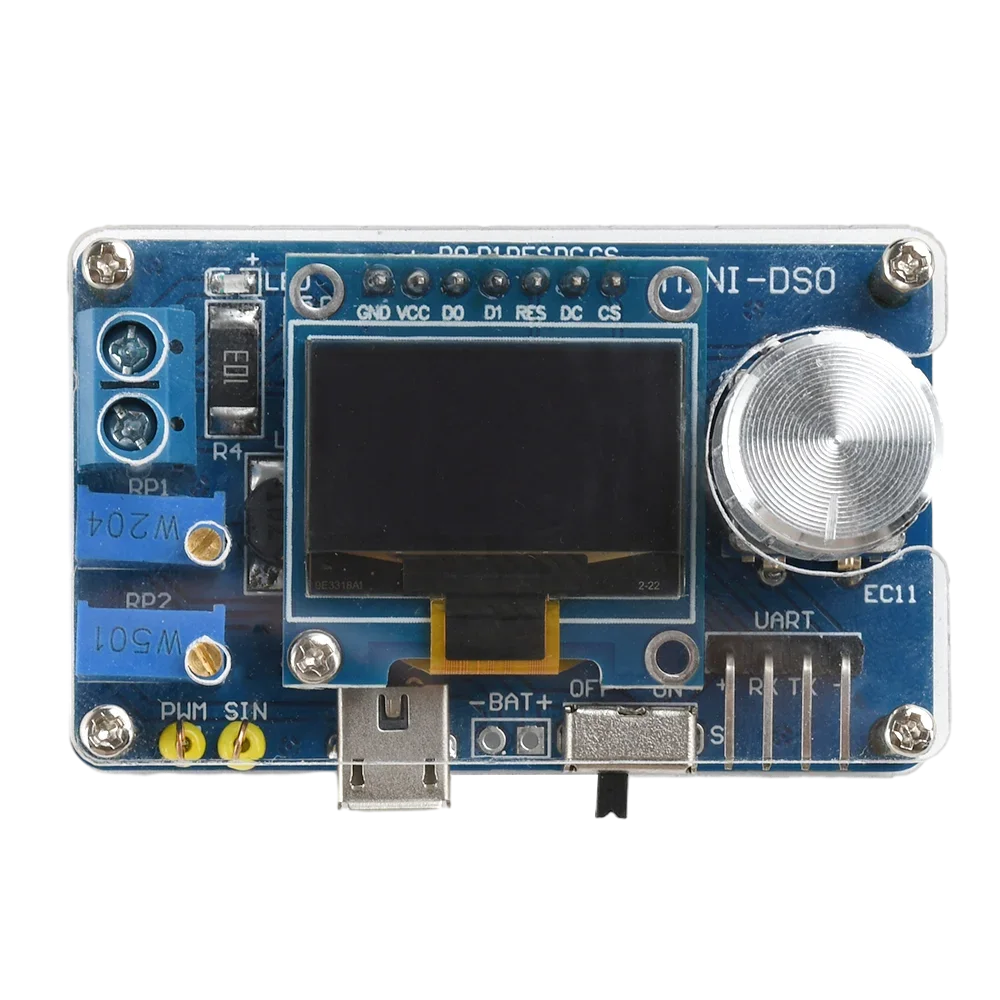

6. Waveform generator: PWM (PWM generator) and SIN (sine wave generator), adjust RP1 and RP2 to change the amplitude respectively

Product parameters:

Power supply voltage: DC 5V (micro usb)

Voltage range: 0~30V (LSB needs to be adjusted)

Level sampling: 10kHz@100us/div

Sec/div: 500ms, 200ms, 100ms, 50ms, 20ms,

10ms, 5ms, 2ms, 1ms, 500us, 200us, 100us

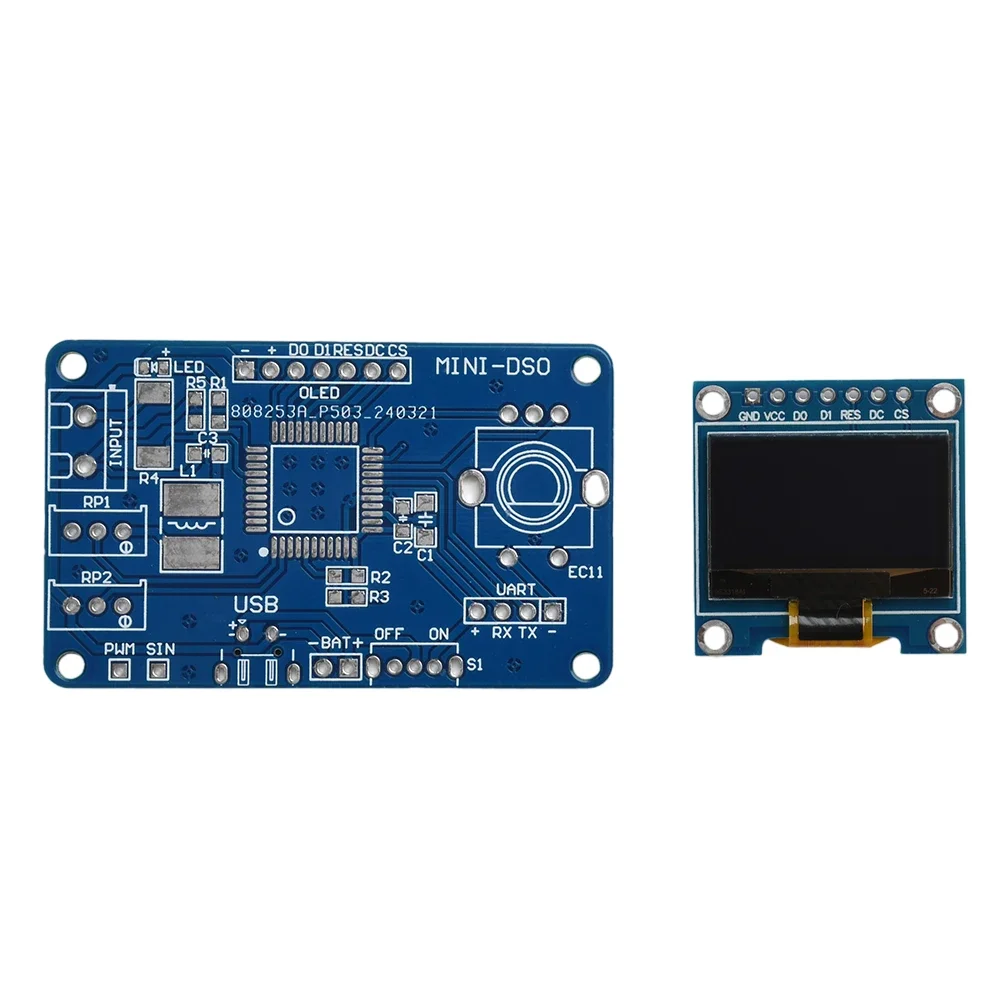

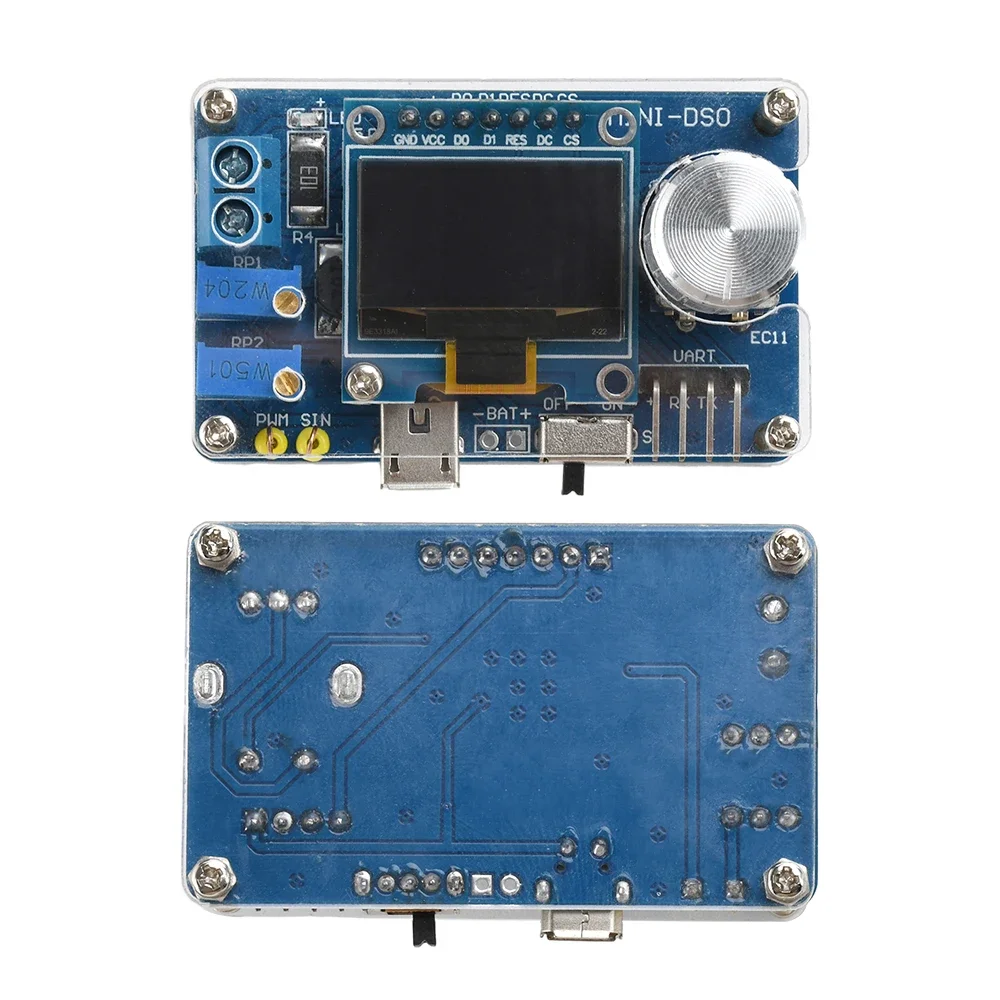

Circuit board size: 57*35mm

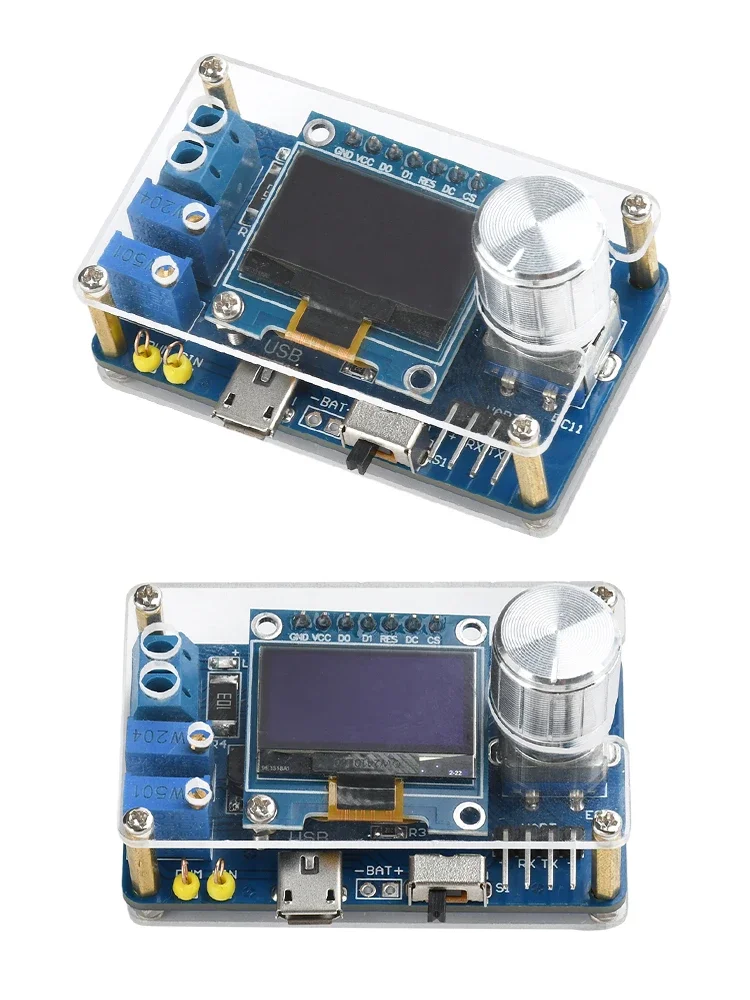

Finished product size: 57*35*30mm

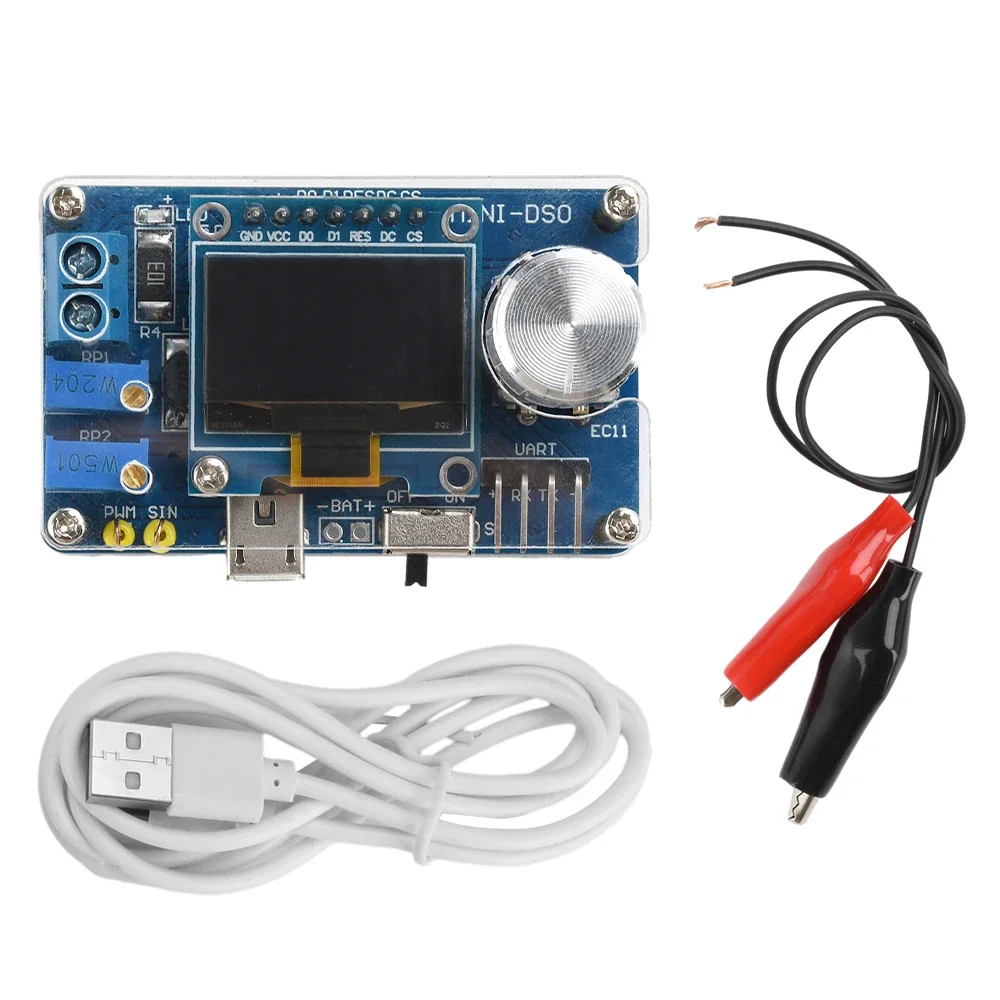

Pacakge list:

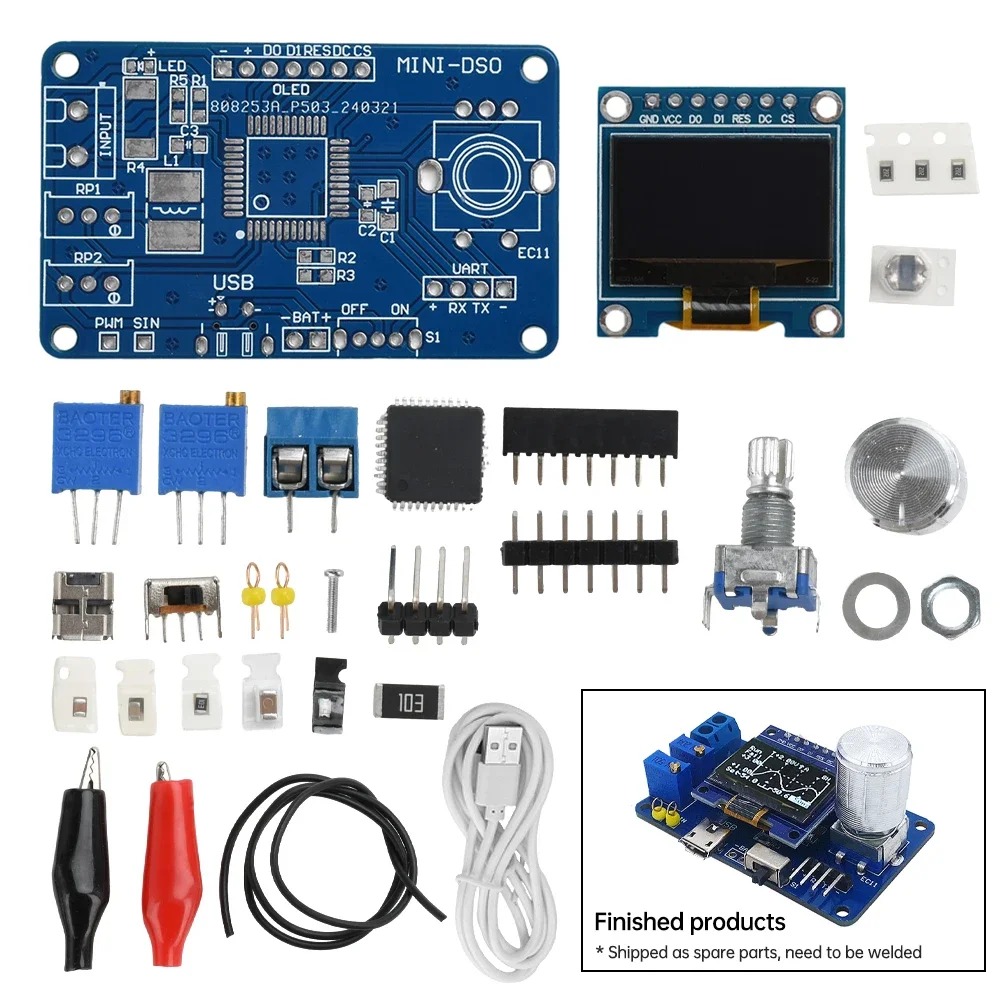

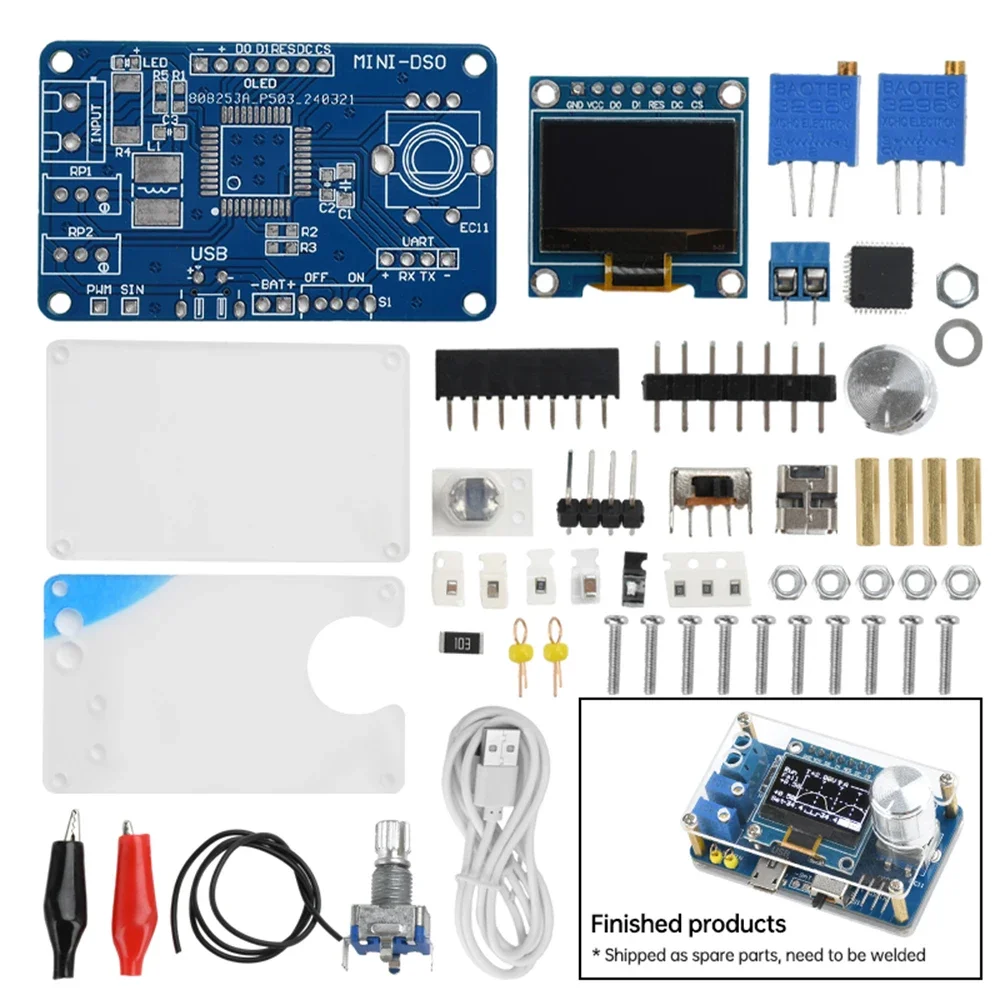

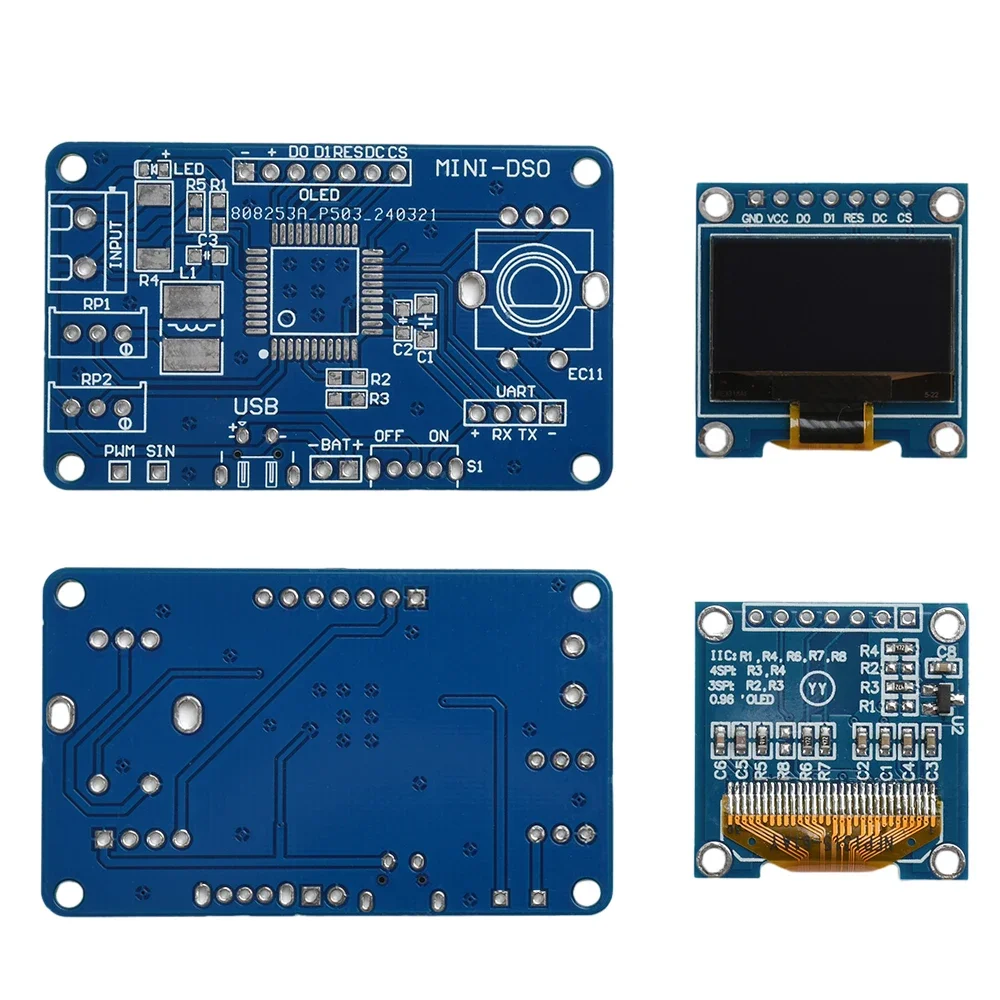

DIY oscilloscope parts*1
