Product Features

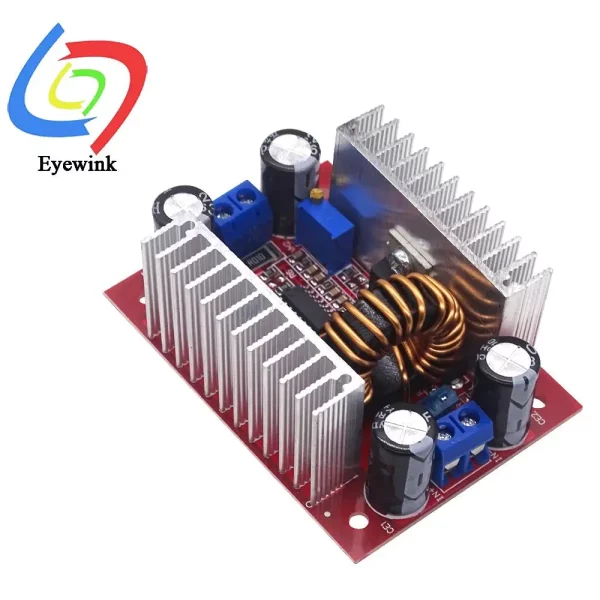

Module Name: 400W Boost Constant Current Module
Module feature: Non isolated boost module (BOOST)
Input voltage: DC8.5V-50V
Input current: 15A (MAX) exceeds 8A, please strengthen heat dissipation
Output voltage: 12-60V continuously adjustable
Constant current range: 0.2-12A
Temperature: -40 to+85 degrees (if the ambient temperature is too high, please strengthen heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: up to 96%
Power protection: No output short circuit protection
Input reverse polarity protection: No
Installation: 4 2.6mm screw holes
Connection method: terminal block
