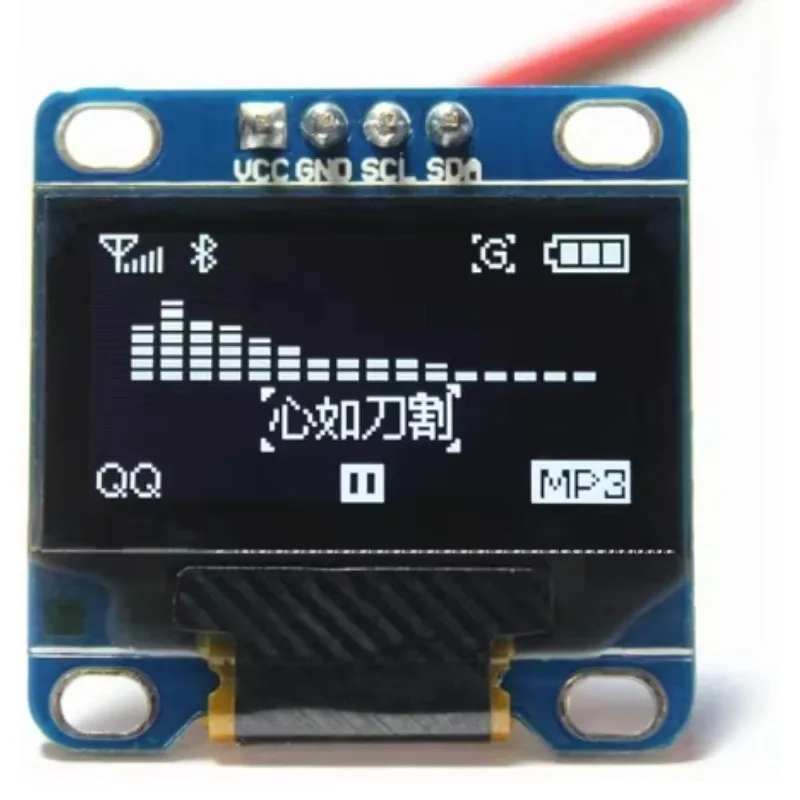

0.96″ Inch OLED Display Screen Module SSD1306 I2C IIC SPI Serial 128×64 3.3V-5V Blue/blue Yellow/White for Arduino ESP32 ESP8266

Description:
1) High Resolution Display :Boasting a resolution of 128×64 SS, this OLED display module offers clear and vibrant visuals for your Arduino ESP32 ESP8266 projects.

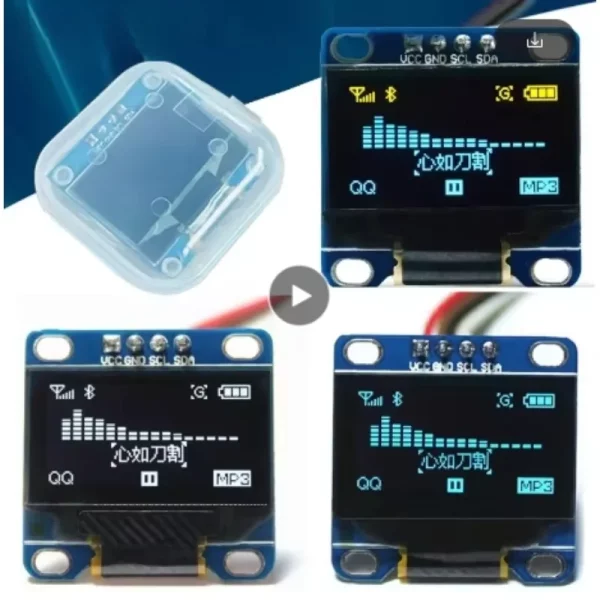

2) Versatile Color Options :With color options in Blue, Yellow, and White, you can customize the display to match your project’s aesthetic or enhance visibility.
3) I2C IIC Control :The module is controlled via I2C IIC, making it easy to integrate into your Arduino projects and enjoy a seamless user experience.

4) Wide Voltage Range :Operating within a voltage range of 3.3V-5V, this display module is compatible with a variety of power sources, ensuring reliable performance.
5) Animation Functionality :The display module supports animation functionality, allowing you to create engaging and interactive experiences for your users.
6) Chinese Origin :Originating from Mainland China, this display module guarantees high-quality construction and reliable performance.

Feature:
• 0.96 inch,Resolution: 128 x 64, View angle: > 160°, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W • Embedded Driver IC: SSD1306. Communication: I2C/IIC Interface, only need two I / O ports • It for Arduino Nano, R3 board and Mega, Raspberry pi, 51 MCU, STIM 32, etc. • No backlight is required, and the display unit can be self-luminous. It has ultra-high contrast, bright and clear dots, and it is easy to read even small fonts

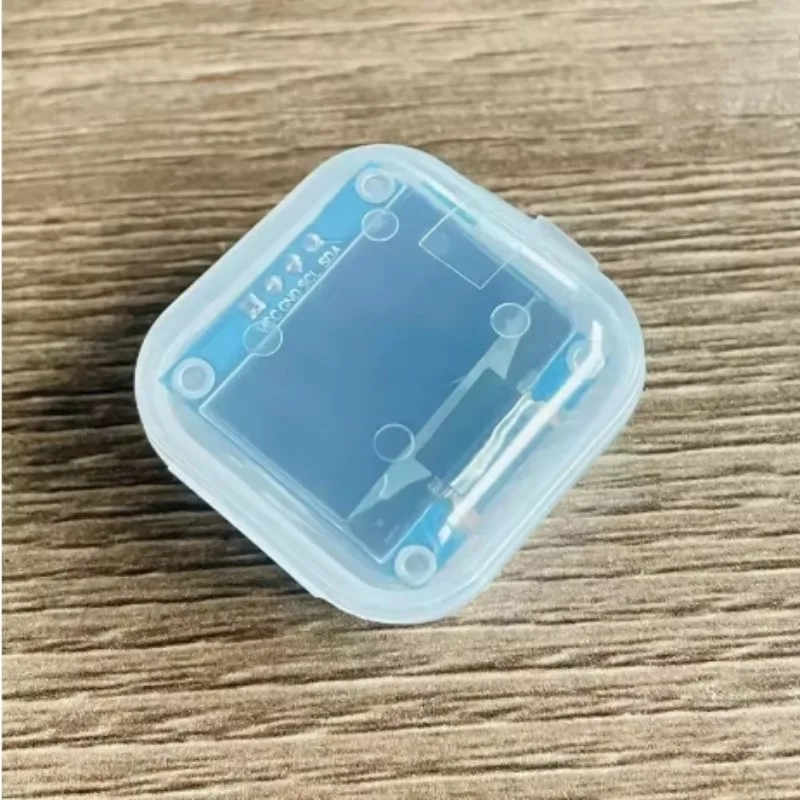

• There are no fonts embedded in the OLED controller, users can create fonts through font generation software. Package include: 1×0.96 OLED module(with protective box) Blue/Blue yellow/ white

Product description：
1) OLED self-luminous, no backlight.
2) High resolution: 128×64 (same resolution as 12864, high PPI).
3) Large viewing angle: greater than 160° (a screen with the largest viewing angle in the display).

4) Ultra-low power consumption: normal display 0.06w (far lower than TFT display)
5) Wide voltage power supply (3V~5V), compatible with 3.3V and 5V level logic, no need for level conversion chips
6) The IIC interface only needs 2 IOs to light up easily
7) Provide rich multi-platform routines and provide underlying driver technical support
8) Yellow blue, white, blue three color display scheme optional Applications:MP3, MP4, watch. Head-mounted displays. Meters and other intelligent instruments.
