描述
- Display Mode: 128*64
- is_customized: Yes
- Model Number: 0.96
- Type: oled
- Origin: Mainland China
- Resolution: 128*64

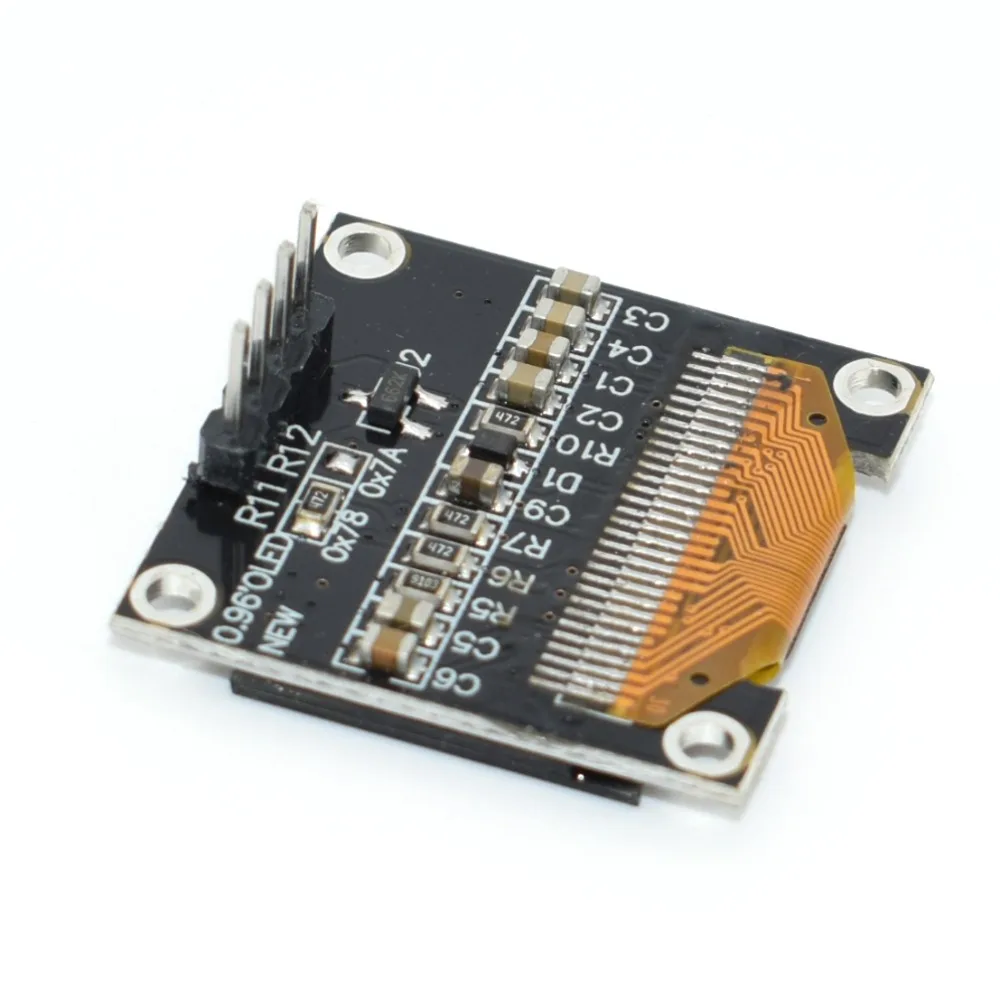

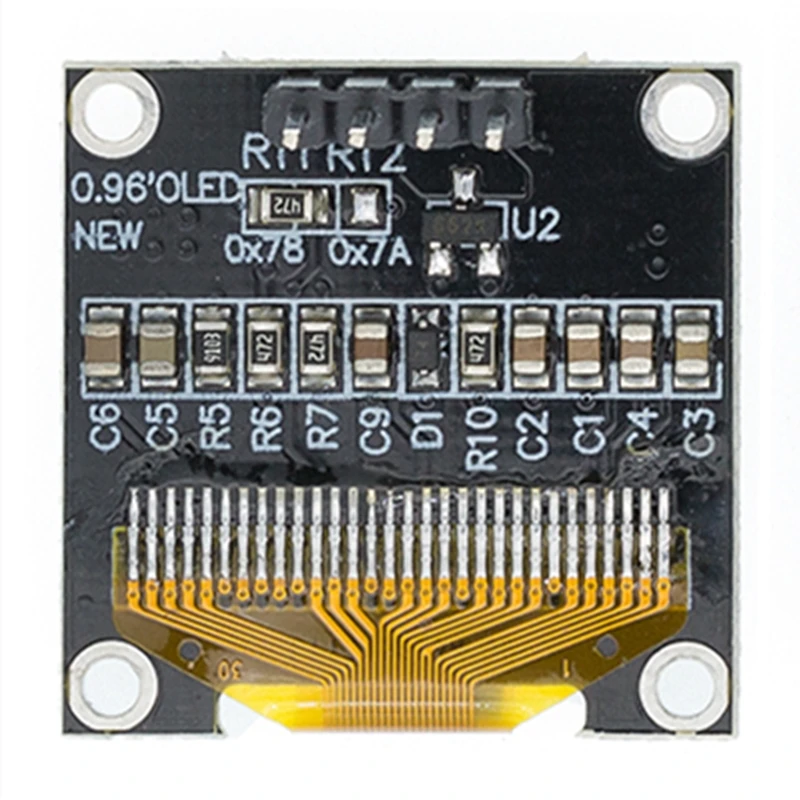

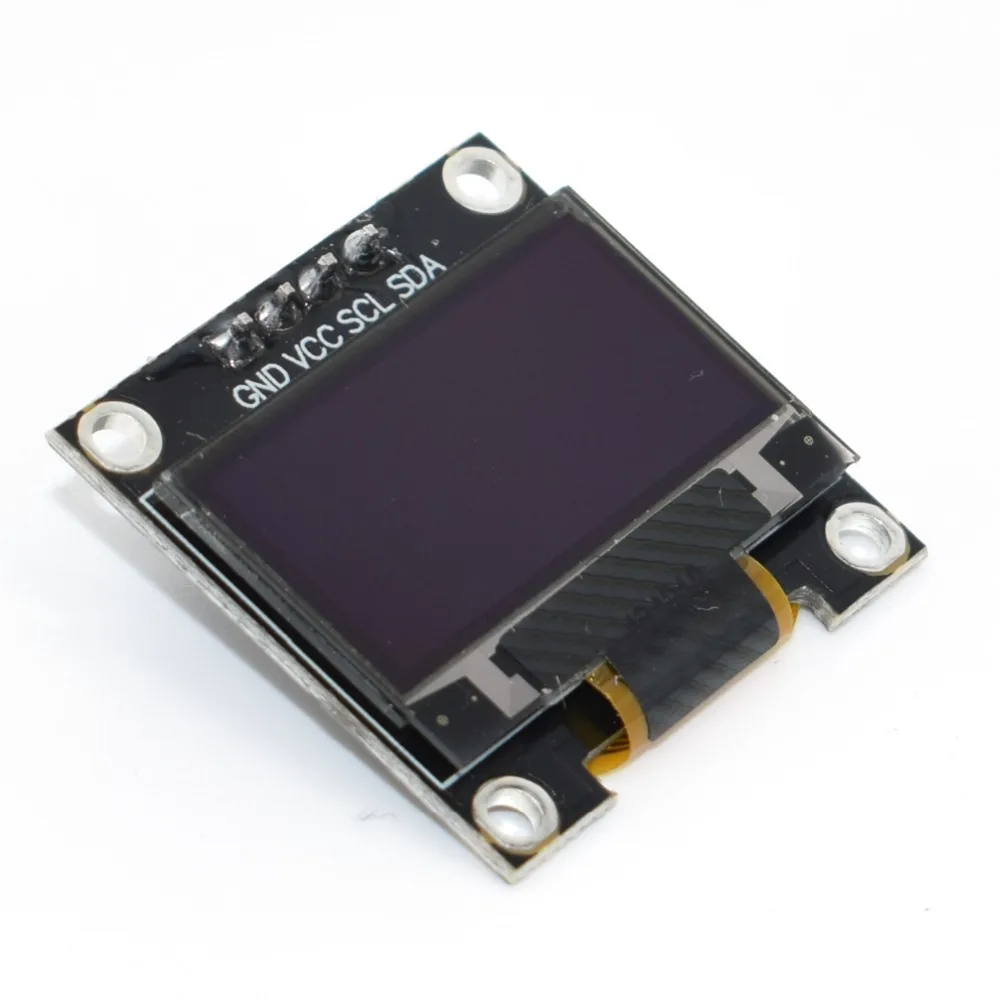

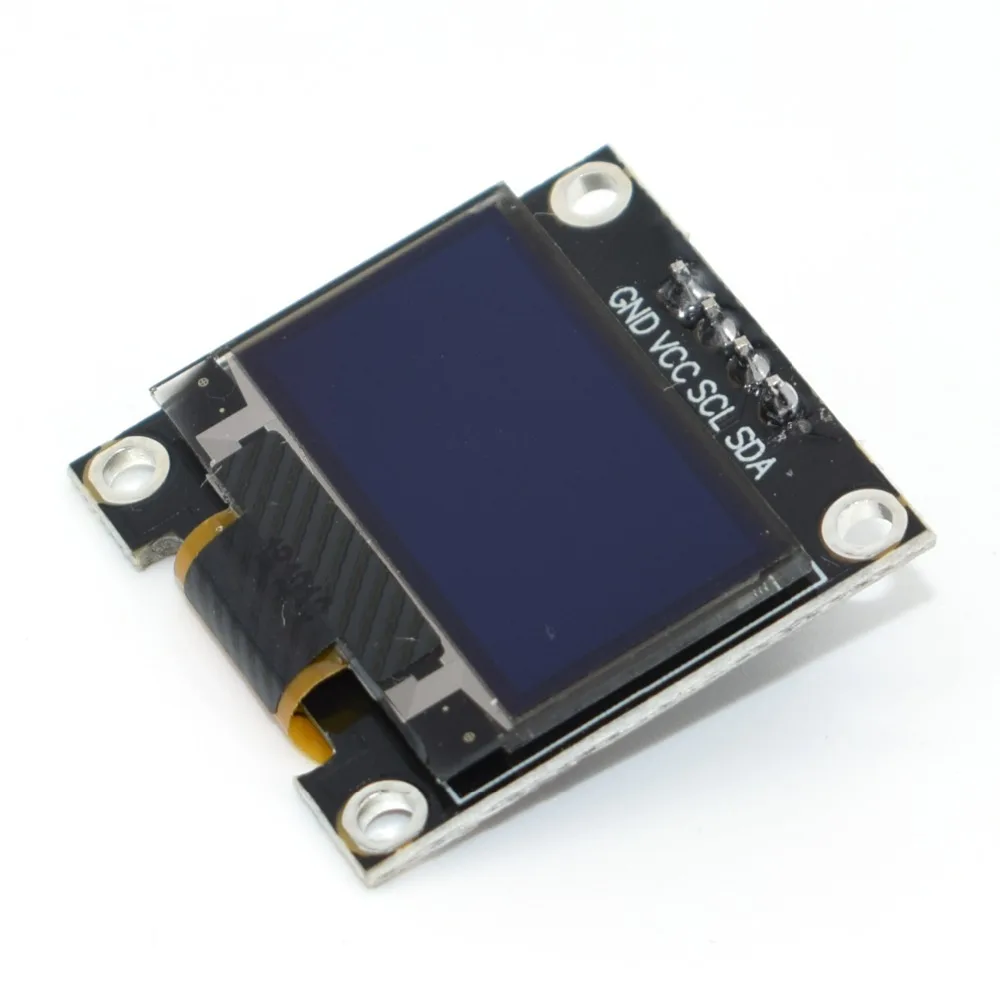

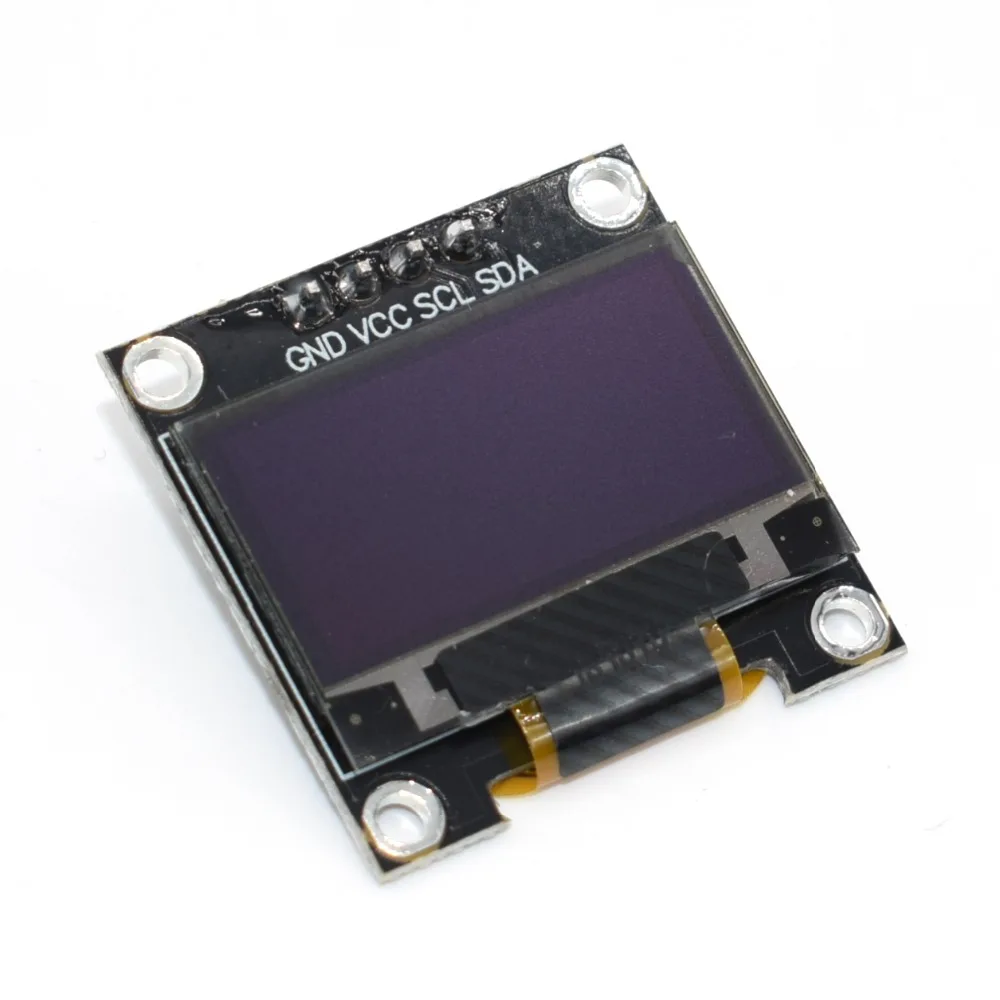

128*64 LED display module for Arduino, supports many control chip.
Fully compatible with for Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Super high brightness and contrast are adjustable
With embedded driver/controller

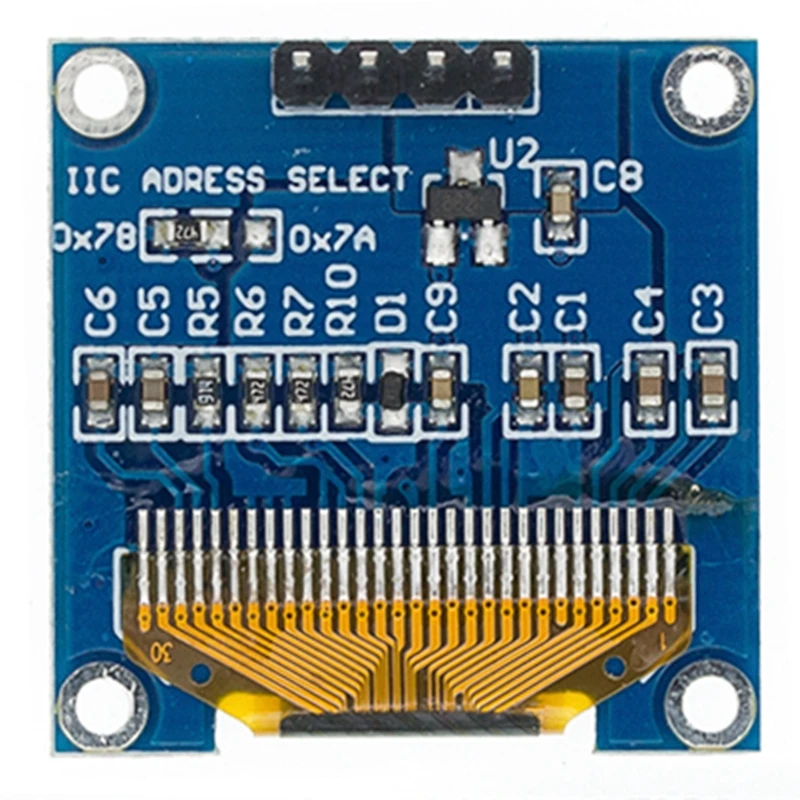

Interface type is IIC

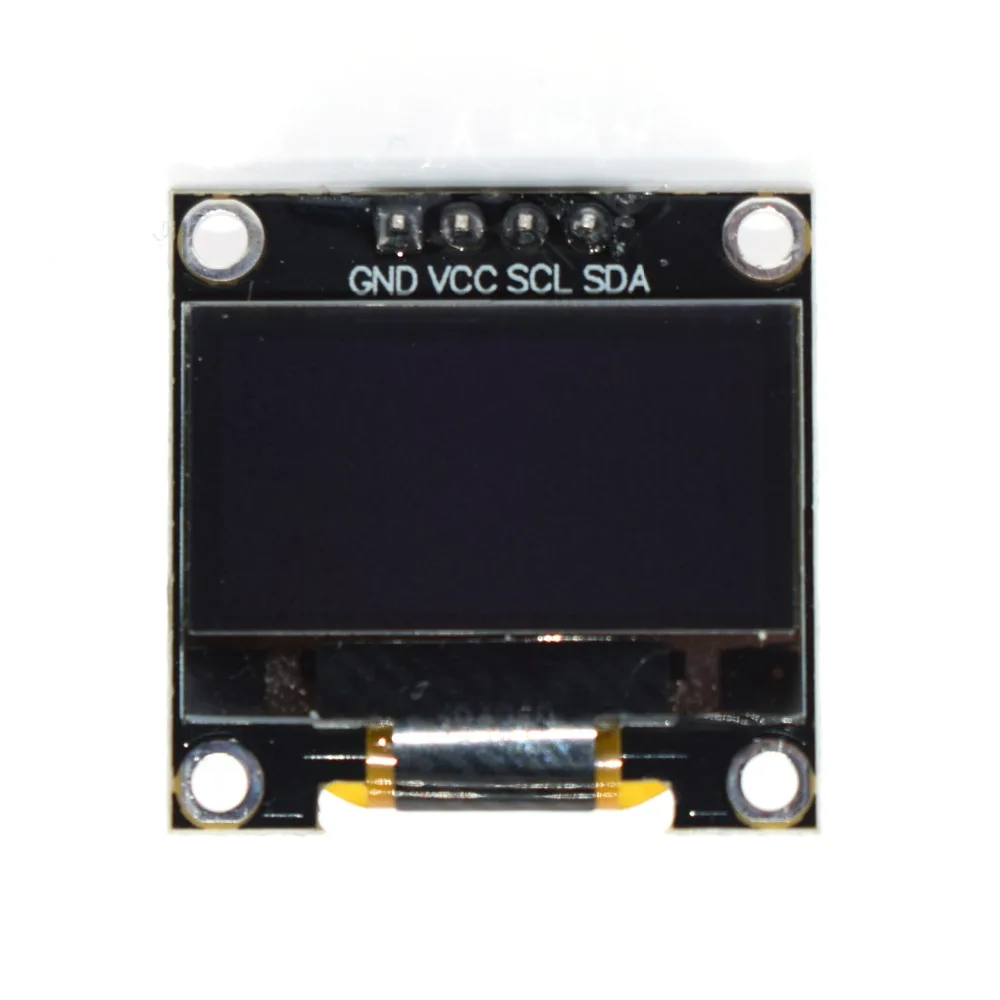

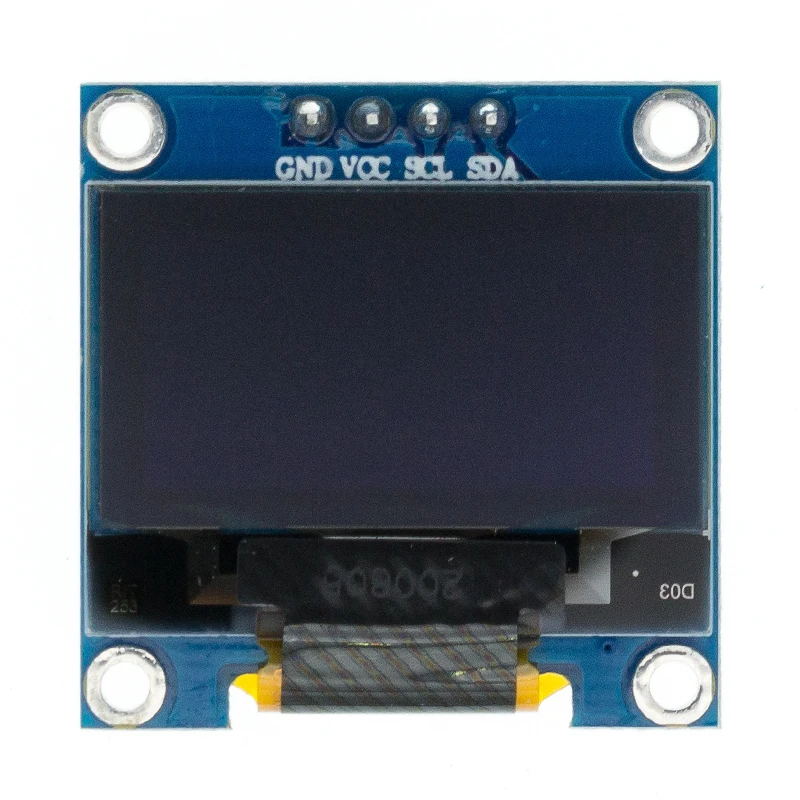

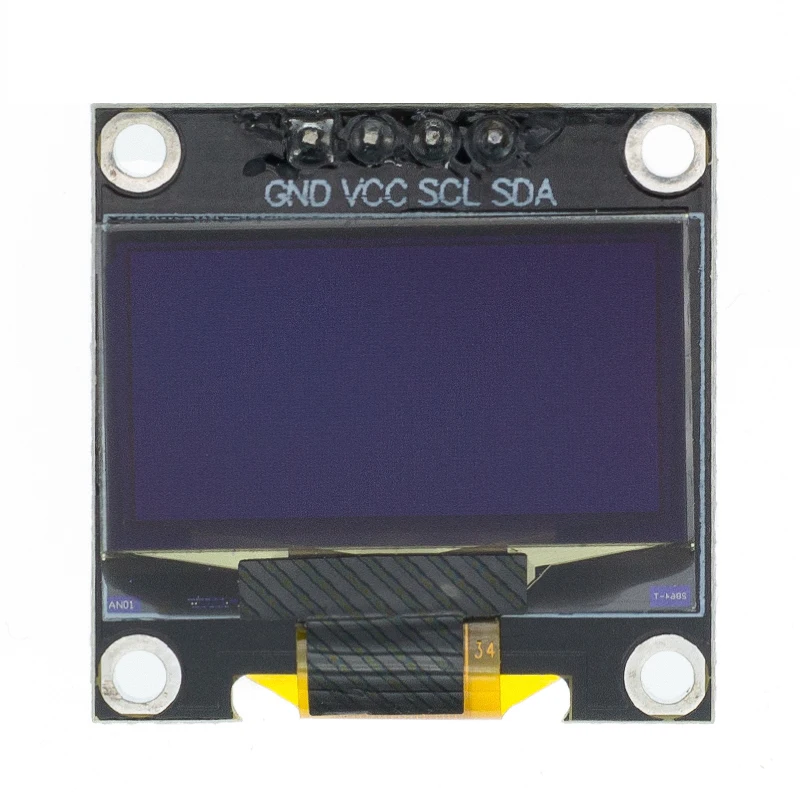

Pin Definition: GND, VCC ,SCL, SDA
Pins: 4 pins
Voltage: 3V ~ 5V DC
Working Temperature: -30 ° ~ 70 °
Character Colors: White
Drive Duty: 1/64 Duty
High resolution: 128 * 64
Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)
Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)

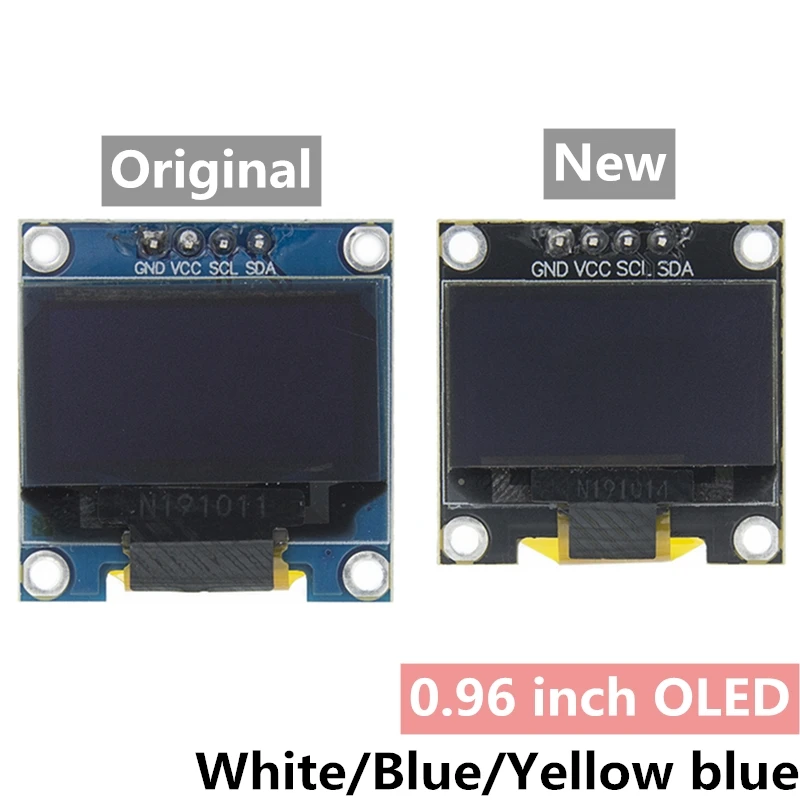

Driver IC: SSD1306(Original) ，SSD1315（NEW）
Note: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness
Package Included:
1PC*128×64 Yellow Blue LED display module for Arduino
